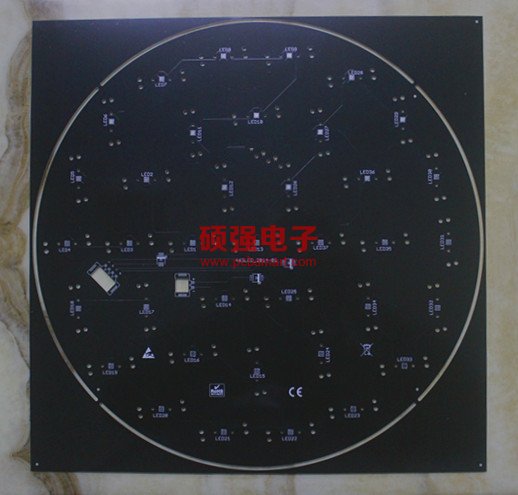

High chickness PCB, 3.0 mm thickness PCB


Quick Details

Copper thickness:1OZ                Surface treatment:HASL                                    Minimum line:0.15mm
Configuration mode:Routing                            Thickness:3.0mm                        Minimum hole size:0.5mm

Certification:  UL,CUL, ISO9001 Etc.

Delivery time: 1-3 days trial order ,5-7 days for normal order

Packages:vacuum packing with Drier,pear wool and Carton.

Shipment:DHL/Fedex/UPS/TNT/EMS ect, object to customers requirements
