Easy PCB

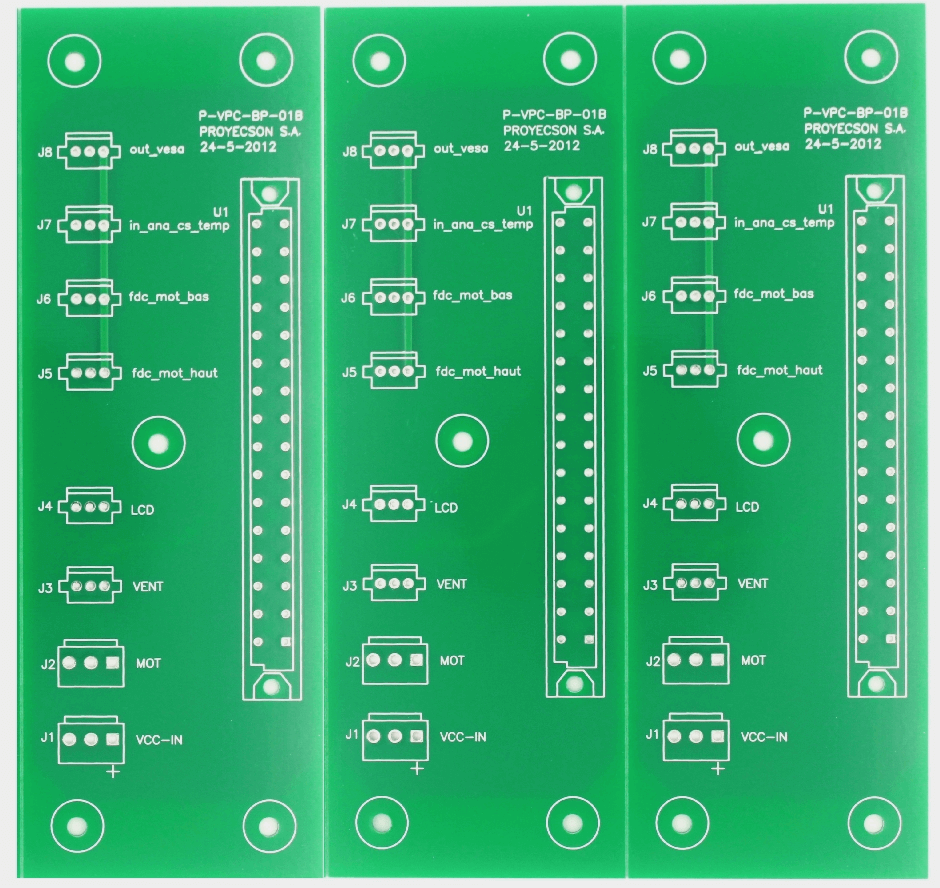

Easy PCB means easy printed circuits board, means the printer circuit board is simple and easy be designed and easy be manufactured,
Printer circuit board is one of the important components in electronic industry. Almost every kind of electronic equipment, from electronic watch to computer, communication electronic equipment, military weapon system, as long as there are integrated circuits and other electronic components, in order to make the electrical interconnection between various components, circuit boards are used.
Printed circuit board is composed of insulating base plate, connecting wire and bonding pad for assembling and welding electronic components, which has dual functions of conducting circuit and insulating base plate. It can replace the complex wiring and realize the electrical connection between the components in the circuit. It not only simplifies the assembly and welding work of electronic products, reduces the wiring workload in the traditional way, greatly reduces the labor intensity of workers, but also reduces the volume of the whole machine, reduces the product cost, and improves the quality and reliability of electronic equipment.
Printed circuit board has good product consistency, it can adopt standardized design, which is conducive to the realization of mechanization and automation in the production process. At the same time, the whole printed circuit board after assembly and debugging can be used as an independent spare part, which is convenient for the exchange and maintenance of the whole machine.
The elements of a circuit board are usually line width, line space, hole size, hole count, board thickness, copper thickness, layers and so on
and normally the easy PCB is mean
1. line width is not less than 0.2mm
2. line space is not less than 0.2mm
3. hole size is not less than 0.4mm
4. hole count is less than 10000 holes/sqm
5. board thickness is 1.0mm, 1.2mm or 1.6mm
6. copper thickness is not more than 1oz,
7. layer is no more than 2 layers
and so on
Easy Printer circuit board is composed of insulating base plate, connecting wire and bonding pad for assembling and welding electronic components, which has dual functions of conducting circuit and insulating base plate. It can replace the complex wiring and realize the electrical connection between the components in the circuit. It not only simplifies the assembly and welding work of electronic products, reduces the wiring workload in the traditional way, greatly reduces the labor intensity of workers, but also reduces the volume of the whole machine, reduces the product cost, and improves the quality and reliability of electronic equipment.
So this is the Shenzhen Shuoqiang Electronics Co.,Ltd.reply for Easy Pcb
