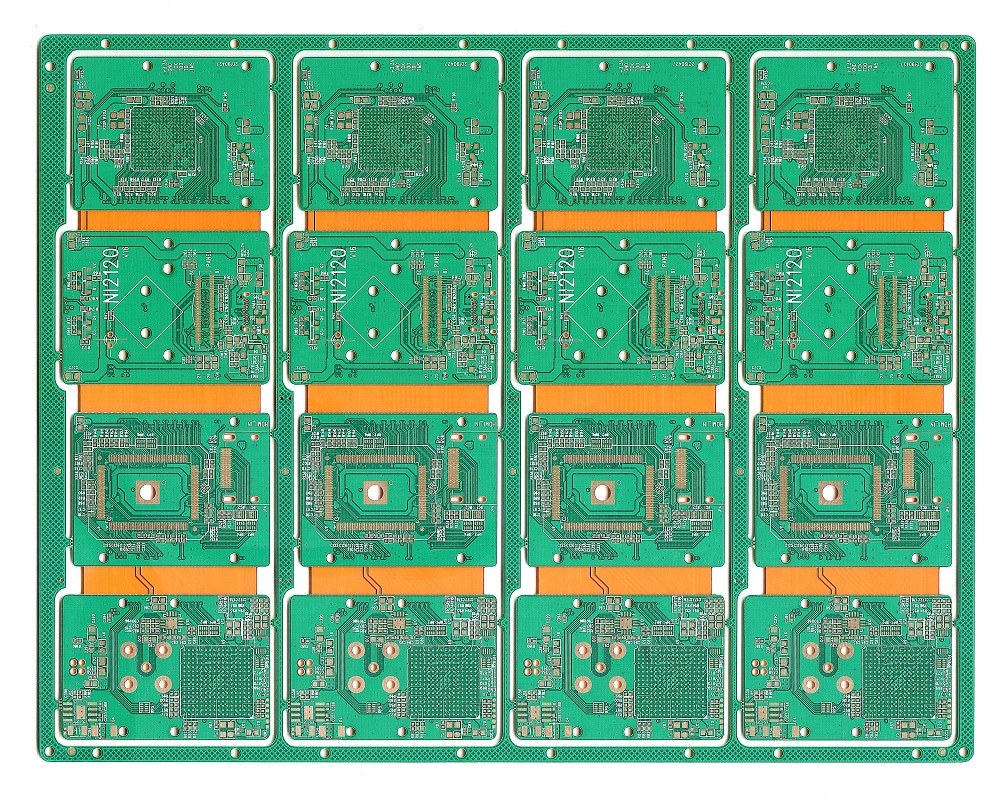

Rigid Flex Pcb or Flexible circuit board and hard circuit board are combined through lamination and other processes according to relevant process requirements to form a circuit board with FPC characteristics and Rigid PCB characteristics.
Advantages and disadvantages editing voice
Advantages: the flex and rigid combination board has the characteristics of FPC and rigid flex PCB at the same time. Therefore, it can be used in some products with special requirements. It has both a certain flexible area and a certain rigid area, which is very helpful to save the internal space of the product, reduce the volume of the finished product and improve the performance of the product.
Disadvantages: the production process of soft and hard combination board is various, the production is difficult, the yield is low, and more materials and manpower are invested. Therefore, its price is relatively expensive and the production cycle is relatively long.
The characteristics of flex and rigid combination board determine that its application field covers all application fields of FPC in PCB, such as:
Key board and side keys, etc
Computer and LCD screen
Mainboard and display screen, etc
